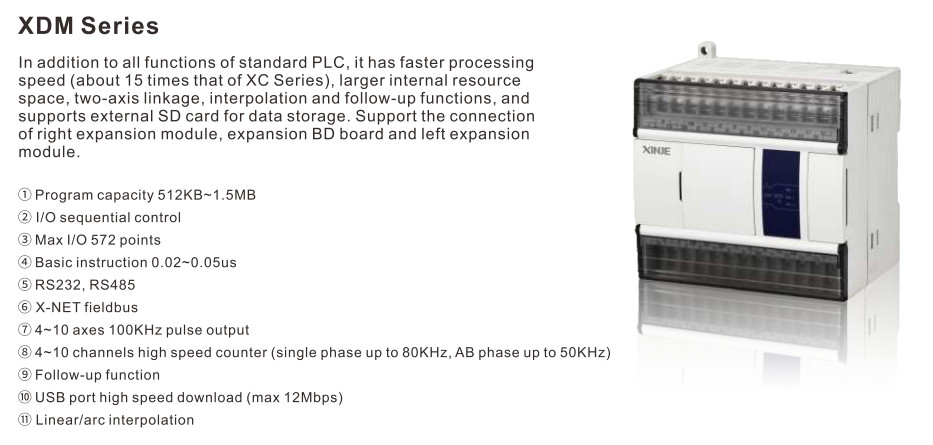

XDM series motion control PLC, including 24, 32 and 60 points models. Compatible with all functions of XD3, it can realize motion control functions such as two-axis linkage, interpolation and follow-up.
XDM series motion control PLC, including 24, 32 and 60 points models.
Compatible with all functions of XD3, it can realize motion control functions such as two-axis linkage, interpolation and follow-up.
It is 12 times faster than XC series and has more internal resource space.
Input type: NPN
Output type: Transistor (T)
Power specification: AC220V
Support basic sequence control instructions and some application instructions.
Support X-NET fieldbus function.
It supports special functions such as high-speed counting (up to 80kHz), 4 ~ 10 axis pulse output (up to 100kHz), frequency measurement and so on.
Standard USB port for programming download.
Support 1 ~ 16 expansion modules, 1 expansion ED and 1 ~ 2 expansion BD.
